| Property | Details |
|---|---|

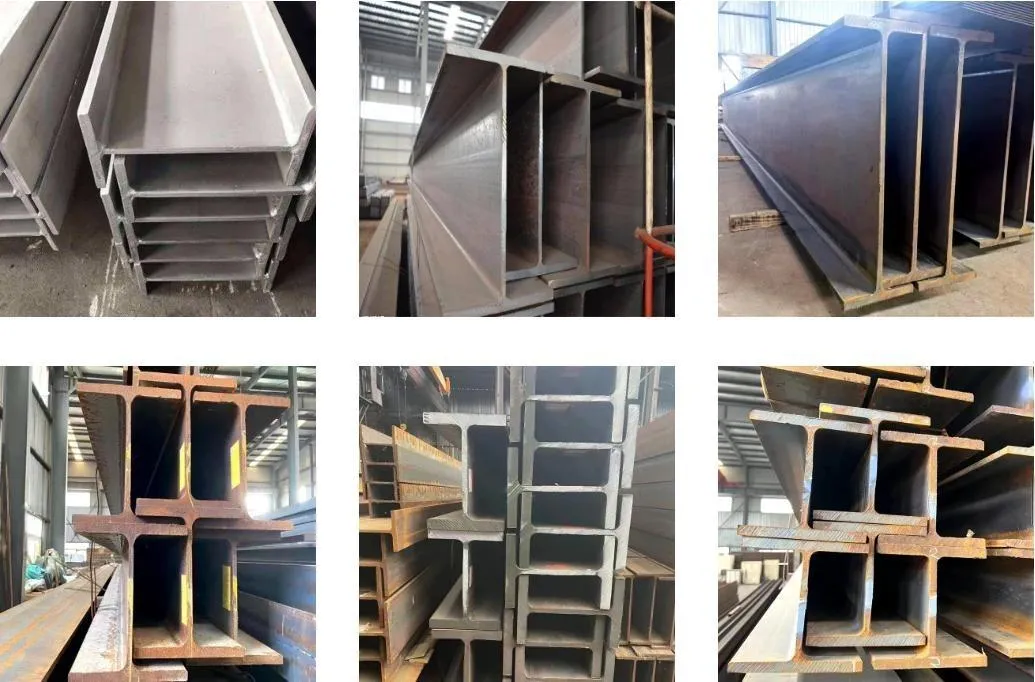

| Product Name | Universal Steel Profile Column H beam or I beam |

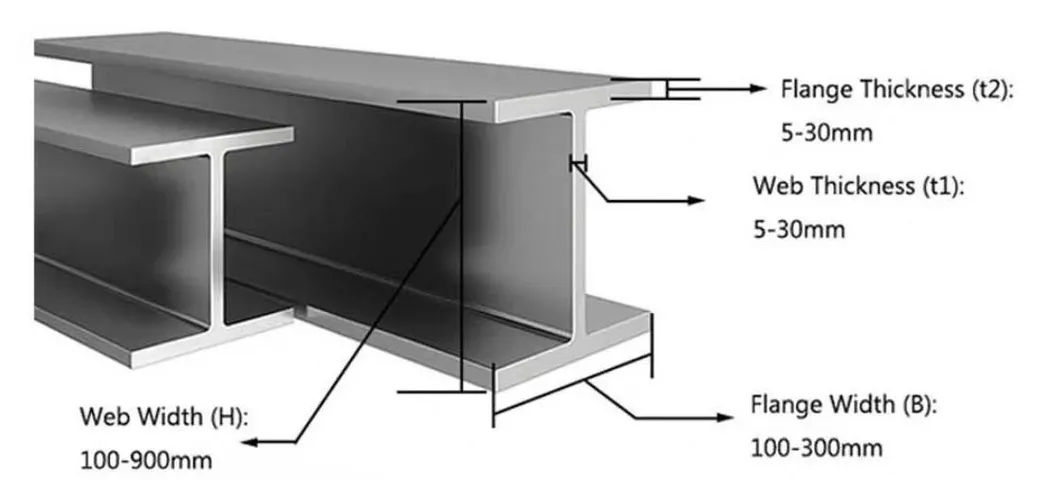

| Size Range | Web Width: 100-900mm | Flange Width: 100-300mm | Thickness: 5-30mm |
| Standard | ASTM, JIS, SUS, DIN, EN, GB, etc. |
| Material | A36, A572, SS400, Q235B, Q345B, S235, S275, S355 |
| Surface Finish | Perforated, Galvanized, Black, Painted, Polished |
| Specification | Height (mm) | Width (mm) | Web Thick (mm) | Wing Thick (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| IPE80 | 80 | 46 | 3.8 | 5.2 | 6.0 |
| IPE100 | 100 | 55 | 4.1 | 5.7 | 8.1 |
| IPE120 | 120 | 64 | 4.4 | 6.3 | 10.4 |
| IPE160 | 160 | 82 | 5.0 | 7.4 | 15.8 |
| IPE200 | 200 | 100 | 5.6 | 8.5 | 22.4 |
| IPE300 | 300 | 150 | 7.1 | 10.7 | 42.2 |
| Designation | Weight (kg/m) | Height (mm) | Width (mm) | t1 (mm) | t2 (mm) | Section Area (cm³) |
|---|---|---|---|---|---|---|
| HE100A | 16.7 | 96.0 | 100.0 | 5.0 | 8.0 | 21.24 |
| HE100B | 20.4 | 100.0 | 100.0 | 6.0 | 10.0 | 26.04 |
| HE120A | 19.9 | 114.0 | 120.0 | 5.0 | 8.0 | 25.34 |
| HE160B | 42.6 | 160.0 | 160.0 | 8.0 | 13.0 | 54.25 |
| HE200A | 42.3 | 190.0 | 200.0 | 6.5 | 10.0 | 53.83 |
