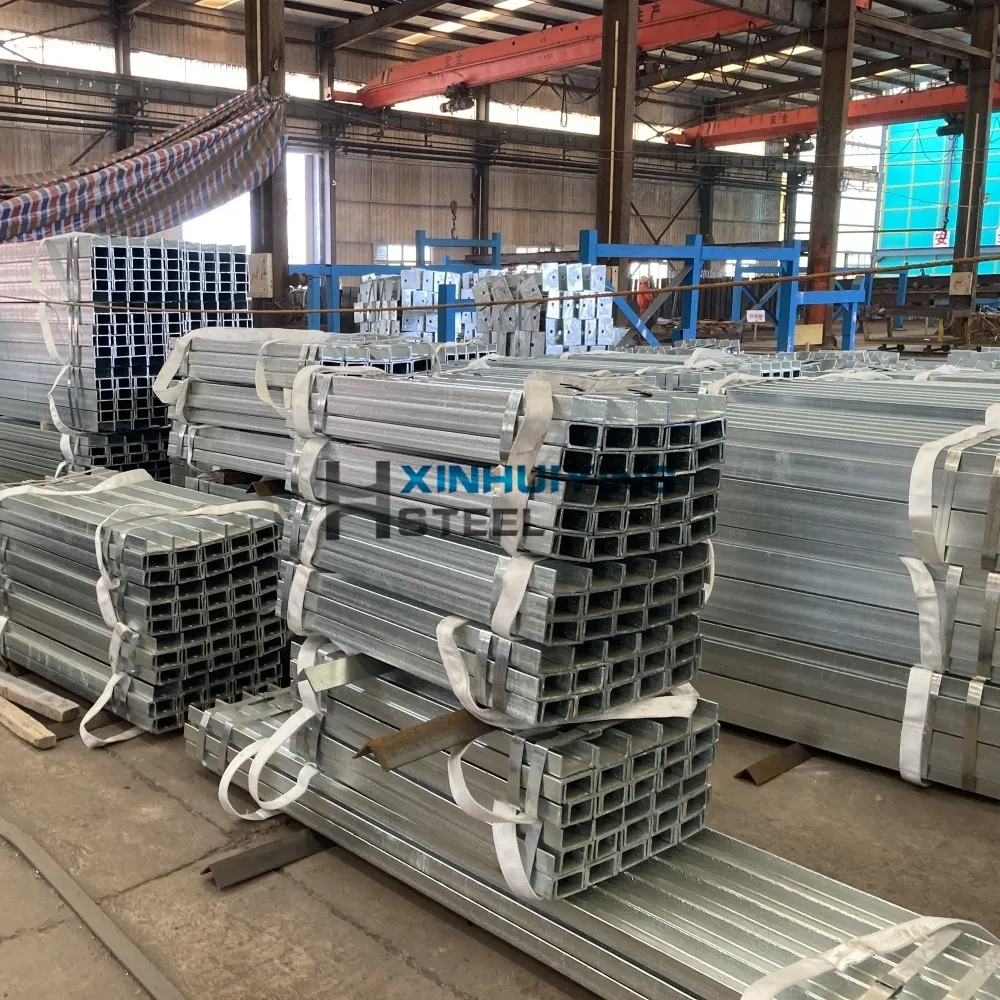

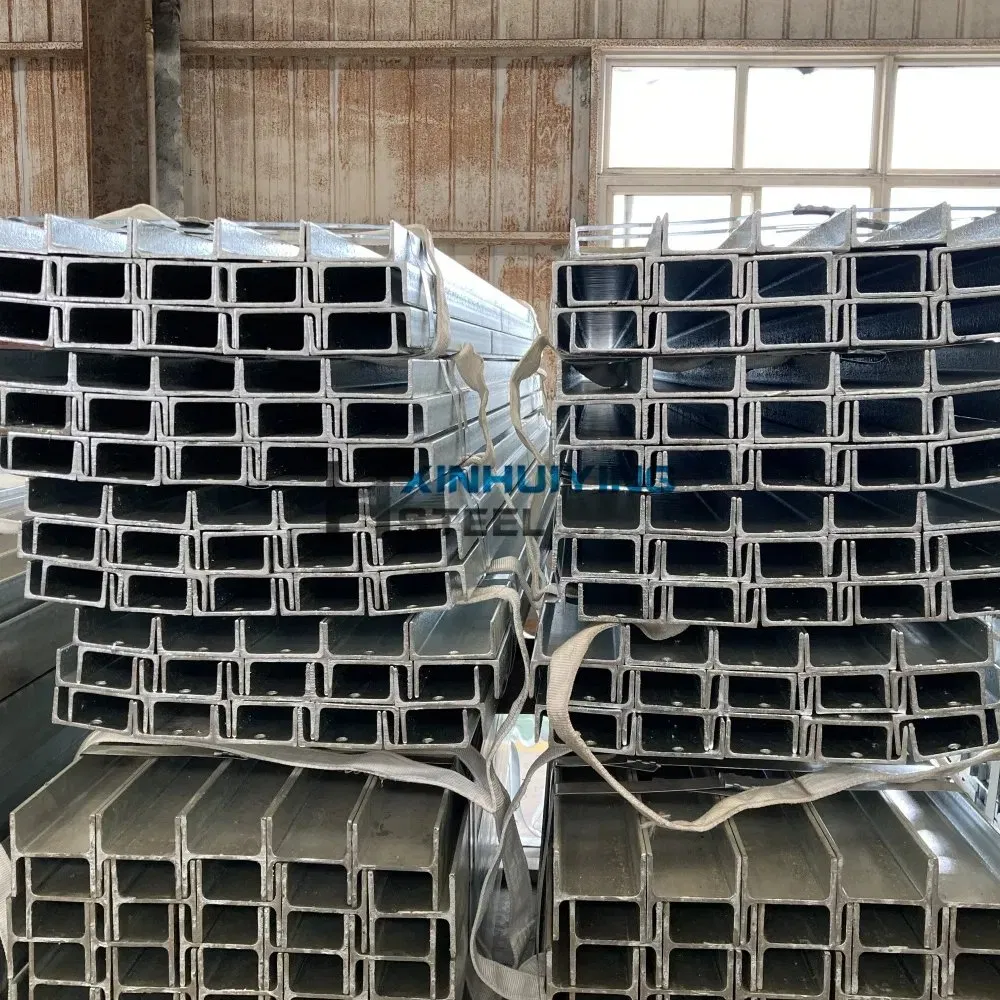

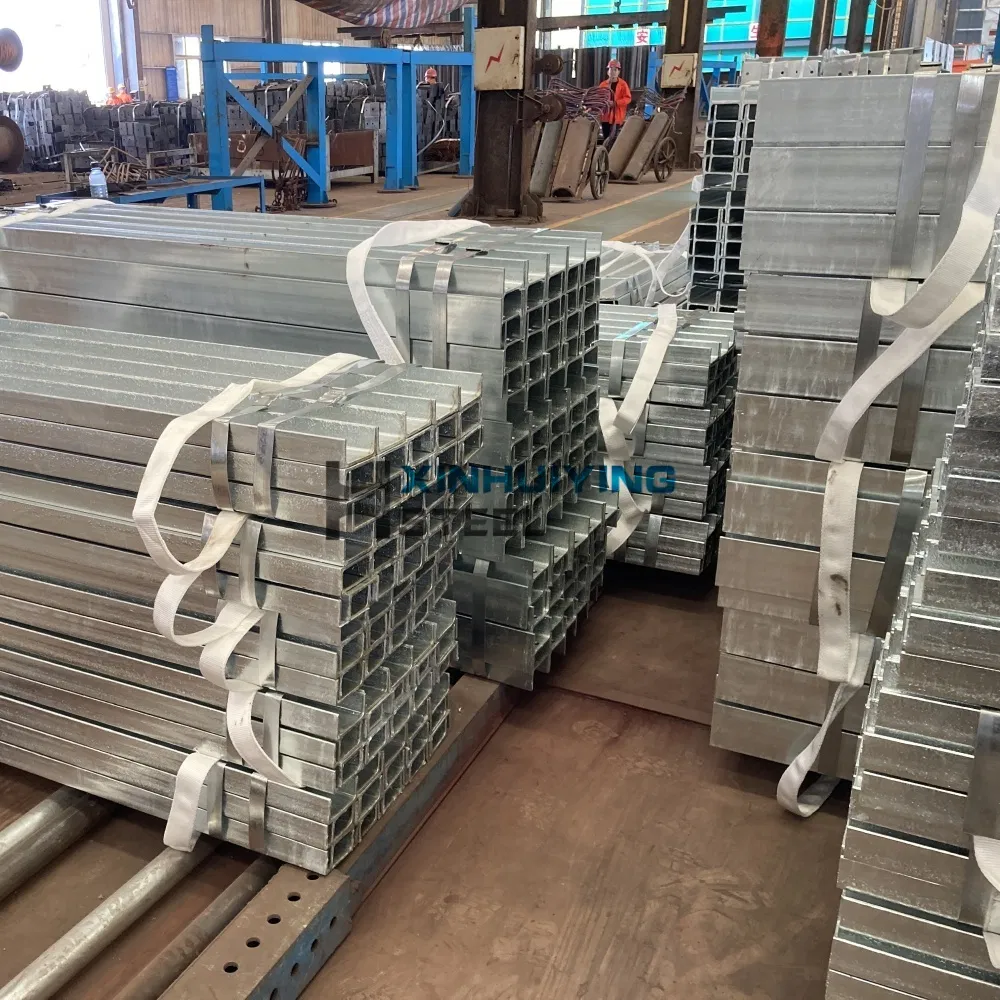

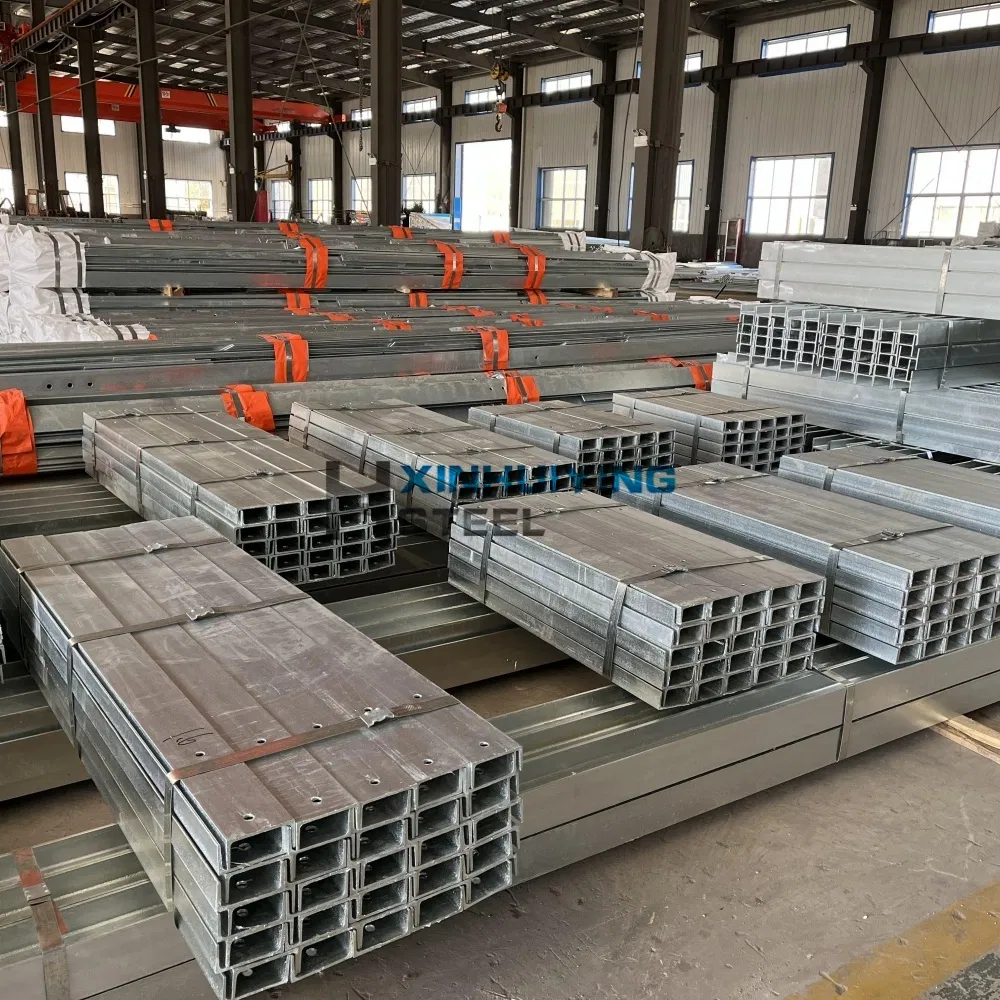

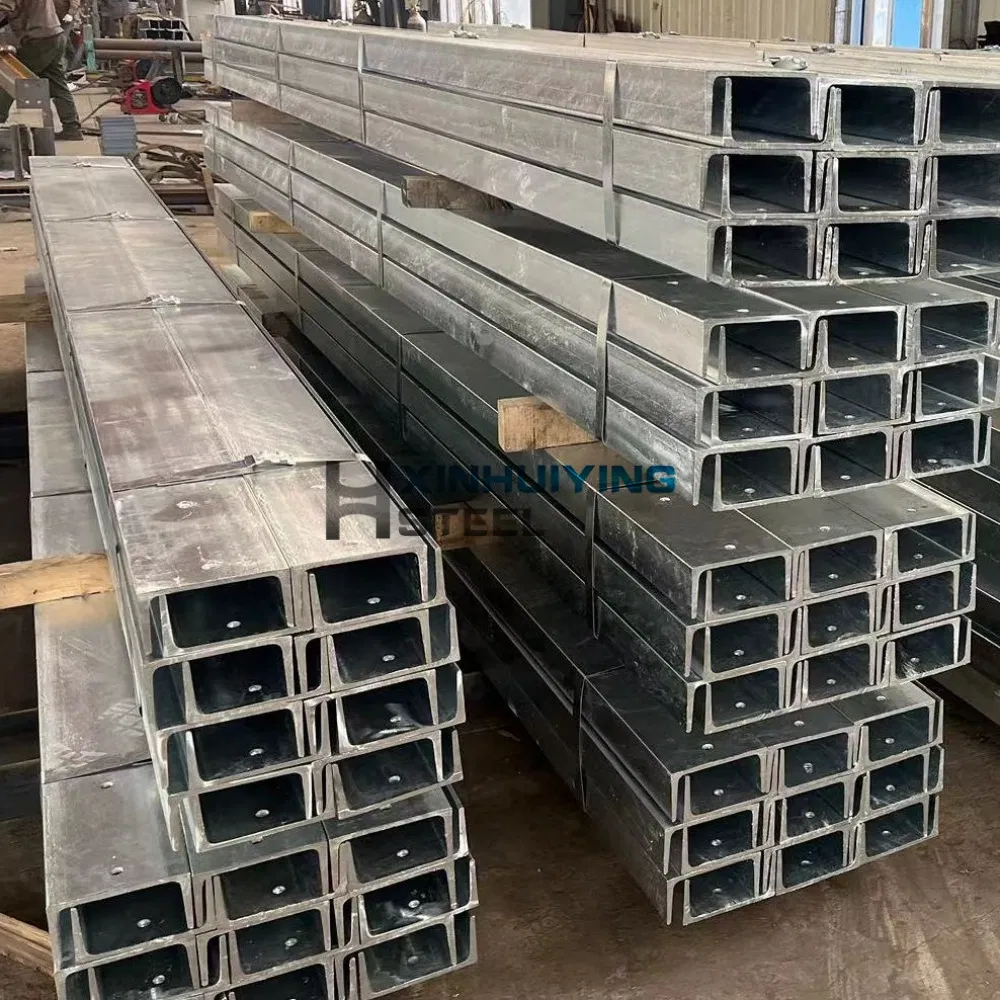

G300/G350 Retaining wall steel C section Steel PFC Channels

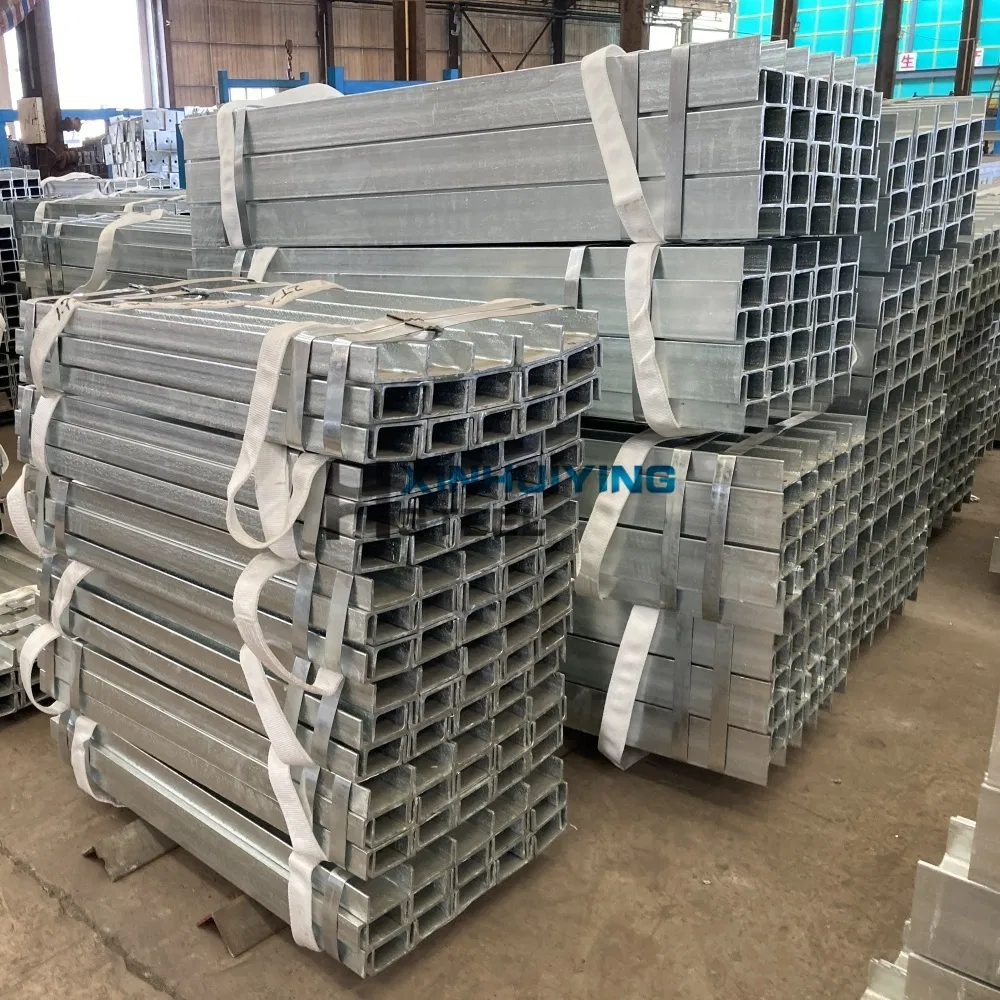

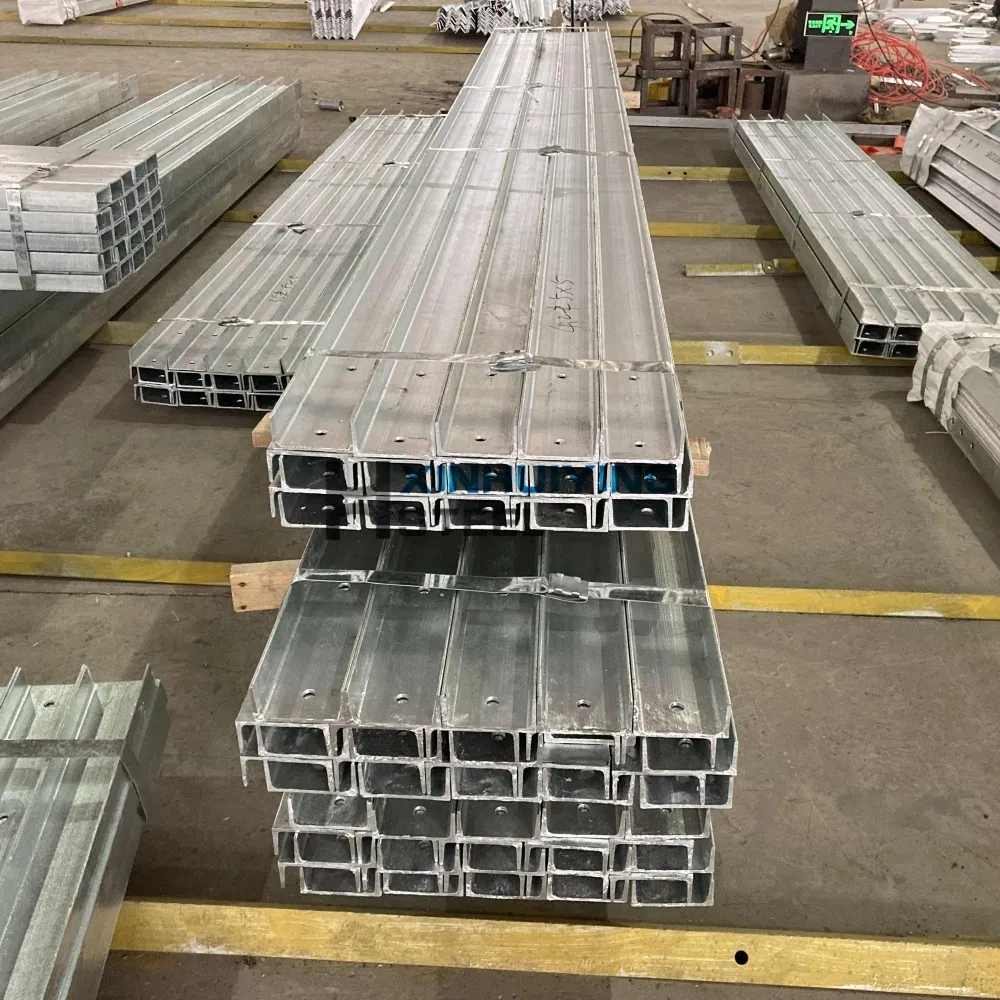

Parallel flange channels (PFCs) are some of the most versatile types of steel beams. Generally made from hot-rolled structural steel, PFC channel dimensions, thicknesses and sizes can vary significantly, with all products retaining that noticeable C-shaped cross-section. This is why they are commonly referred to as C channel beams or C sections.
PFCs are used as a load-bearing element in construction and engineering projects. Their cross-sectional shape allows them to bear significant weight without distorting, making them incredibly versatile and robust for a variety of construction applications.
| Type | Specifications (mm) | Weight (kg/m) |
|---|---|---|
| PFC75*40 | 75*40*3.8*6.1 | 5.9 |
| PFC100*50 | 100*50*4.2*6.7 | 8.31 |
| PFC125*65 | 125*65*4.7*7.5 | 11.9 |
| PFC150*75 | 150*75*6*9.5 | 17.7 |
| PFC200*75 | 200*75*6*12 | 22.9 |
| PFC230*75 | 230*75*6.5*12 | 25.1 |
| PFC250*90 | 250*90*8*15 | 35.5 |
| PFC300*90 | 300*90*8*16 | 40.1 |

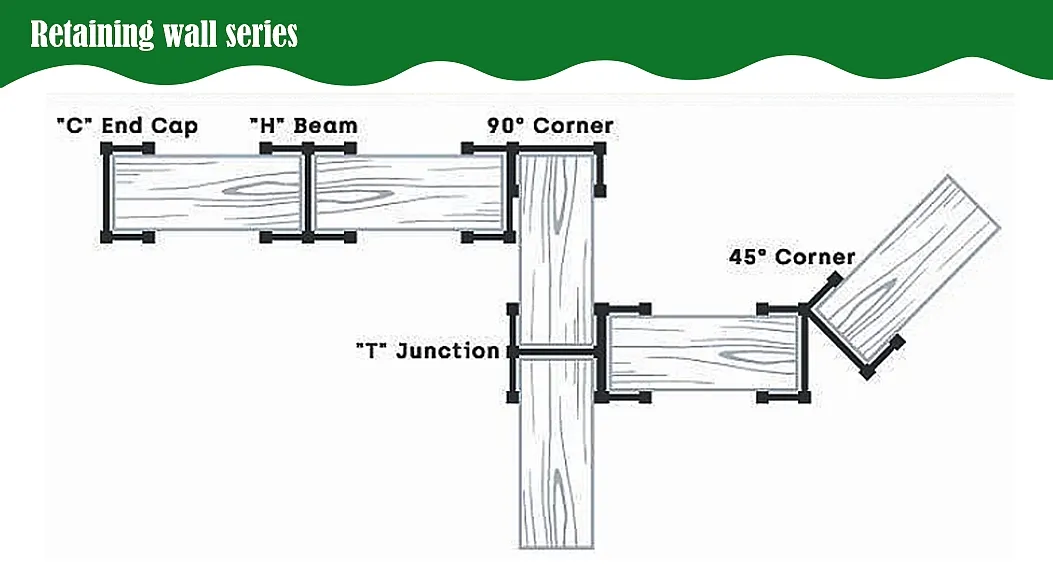

Ideal solution for supporting the straight middle panels of structural retaining wall projects. Compatible with various concrete sleepers.

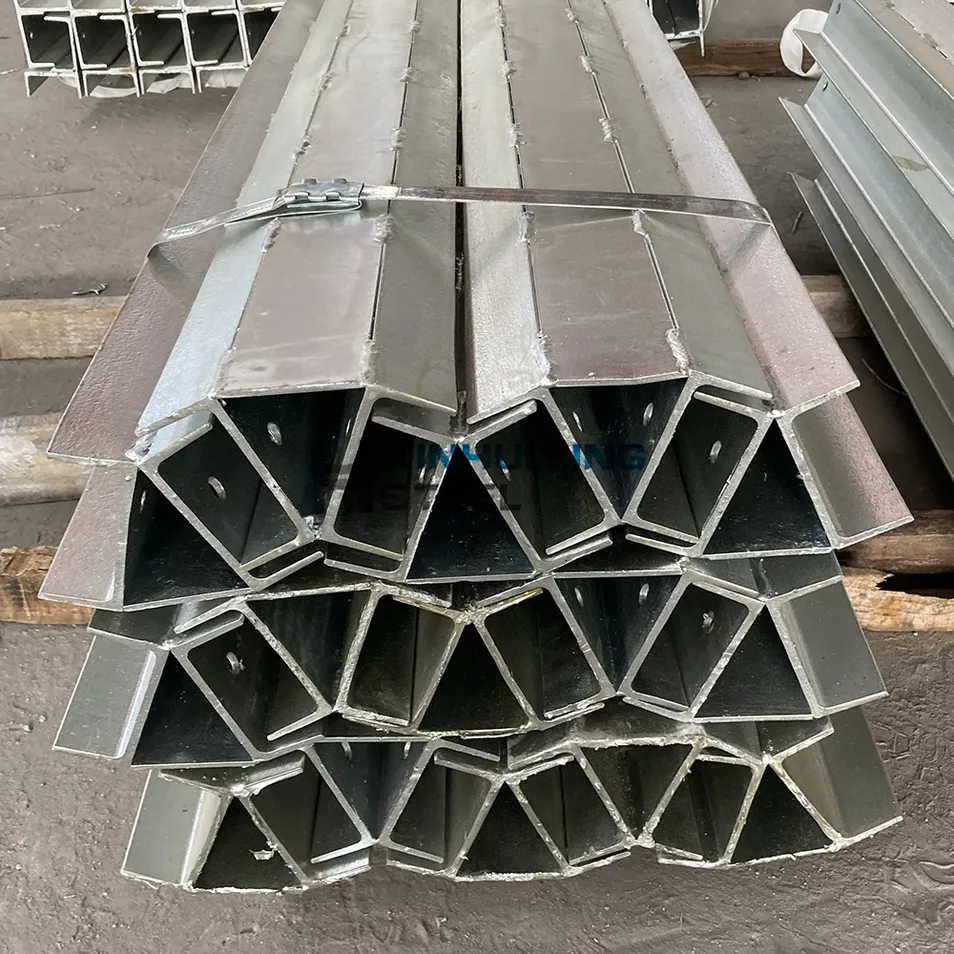

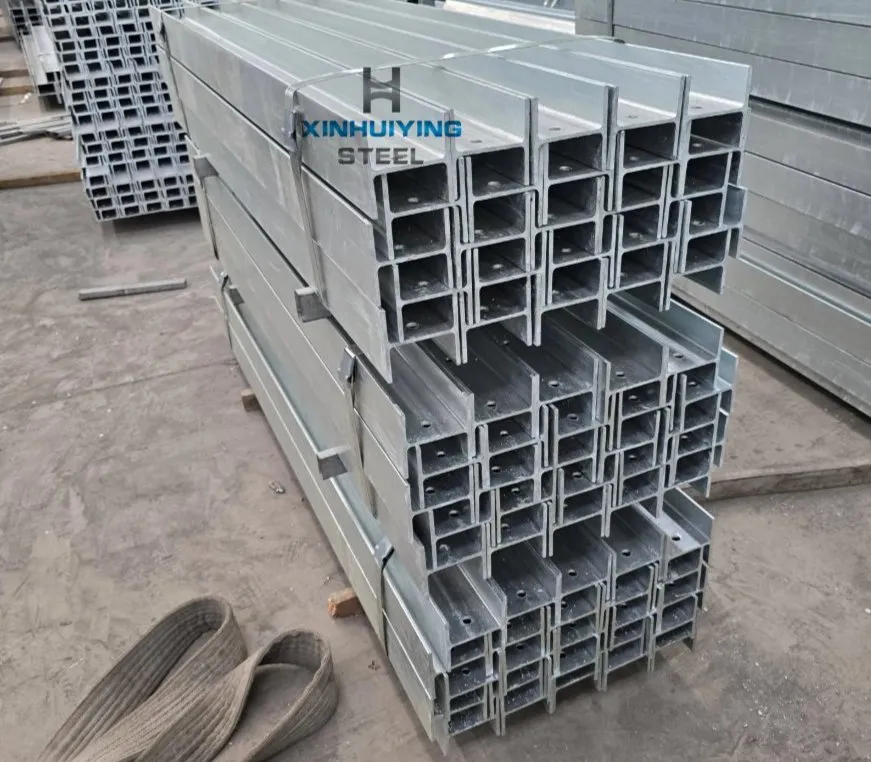

Manufactured by welding two PFC posts, ideal for gentle deviations in your concrete sleeper retaining wall.
Designed for hard 90° corners, providing maximum structural integrity for heavy duty concrete sleepers.

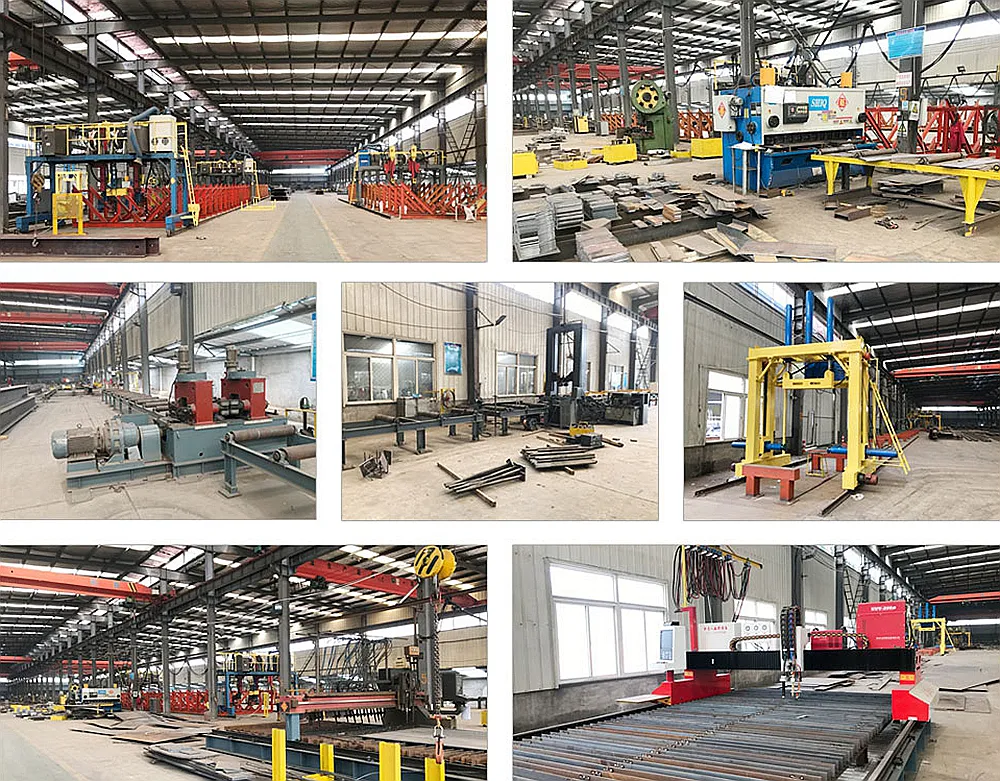

We are a leading steel manufacturer equipped with modern production lines for all kinds of steel fabrications and precision CNC machinery. We specialize in high-quality structural steel, pressure vessels, and galvanized sections.
