Galvanized Corrugated Steel Roofing Decking Sheets 012mm 015mm Metal Floor Decking for Global B2B Buyers

i

Basic Information

Model NO.:Galvanized Metal Floor Decking Sheet

Feature:Anti-Corrosion, Earthquake Resistance, Easy To Install

Install:Online Guidance

Leading Time:7-10 Days

Size:Customizable

Color:Silver

Transport:Professional Export Packaging

Specification:0.12~1.5mm

HS Code:7209250000

Capacity:5000 Tons Per Year

✓

Product Description

Open Deck Flooring is a corrugated steel plate widely used in building floor systems. The ribs are open and combined with concrete to form a composite floor. Compared with closed floor decking, open decking pays more attention to economy and construction flexibility. It is highly suitable for industrial plants, warehouses, and commercial buildings with medium and low loads.

The open section design features a continuous open trapezoidal or wavy rib. When pouring concrete, it cooperates with edge sealing boards or temporary formwork to prevent leakage. The ribs and concrete are mechanically connected by studs, with loads transmitted through shear resistance. It is standardized for fast installation and adapts easily to irregular layouts and concrete thicknesses from 80mm to 150mm.

⚙

Steel Deck Specifications

No.	Device Name	Expanded Width (mm)	No.	Device Name	Expanded Width (mm)
1	AL42-215-645	1000	13	AL51-249-748	1000
2	AL54-189.3-568	1000	14	AL38-152-750	1000
3	AL65-180-540	1085	15	AL38-152-900	1200
4	AL85-250-500	970	16	AL38-152-914	1250
5	AL50-200-600	1000	17	AL25-101-404	624
6	AL50-266.6-800	1200	18	AL76-305-915	1250
7	AL40-185-740	1185	19	AL76-344-688	1000
8	AL40-200-800	1250	20	AL76-295-880	1200

★

Product Parameters & Features

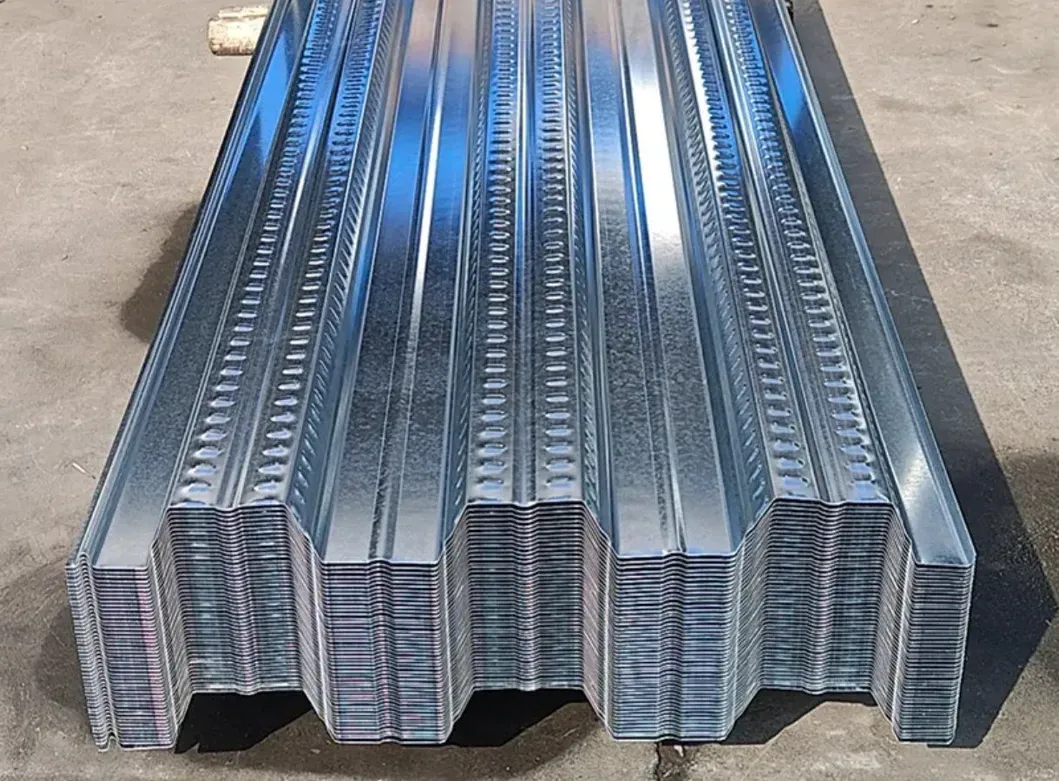

High Strength & Bearing Capacity

Made of high-strength steel, it withstands large loads and is suitable for various large-span and high-rise structures. The lightweight design ensures easy carrying and precise installation.

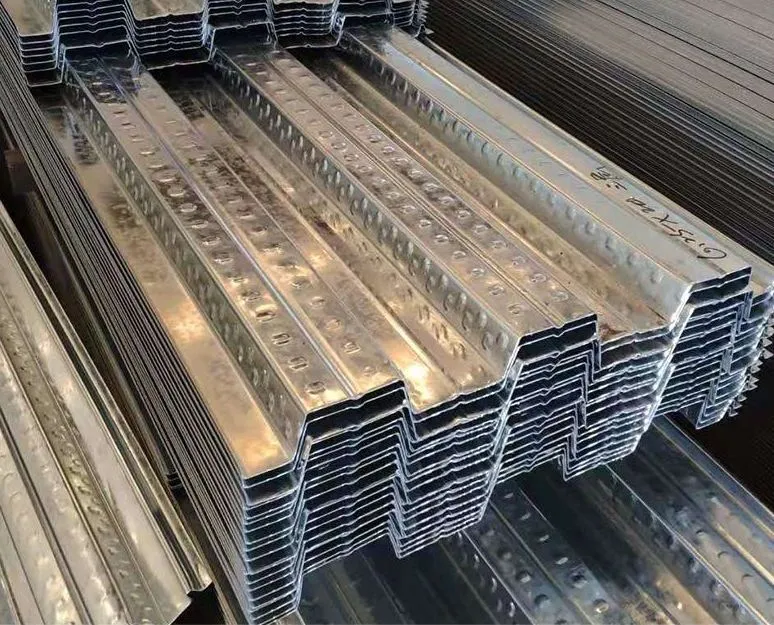

Superior Versatility

Convenient for laying steel bars, installing pipes, and line channels. Once installed, the formed steel plate serves as a safe workbench for workers and equipment during construction.

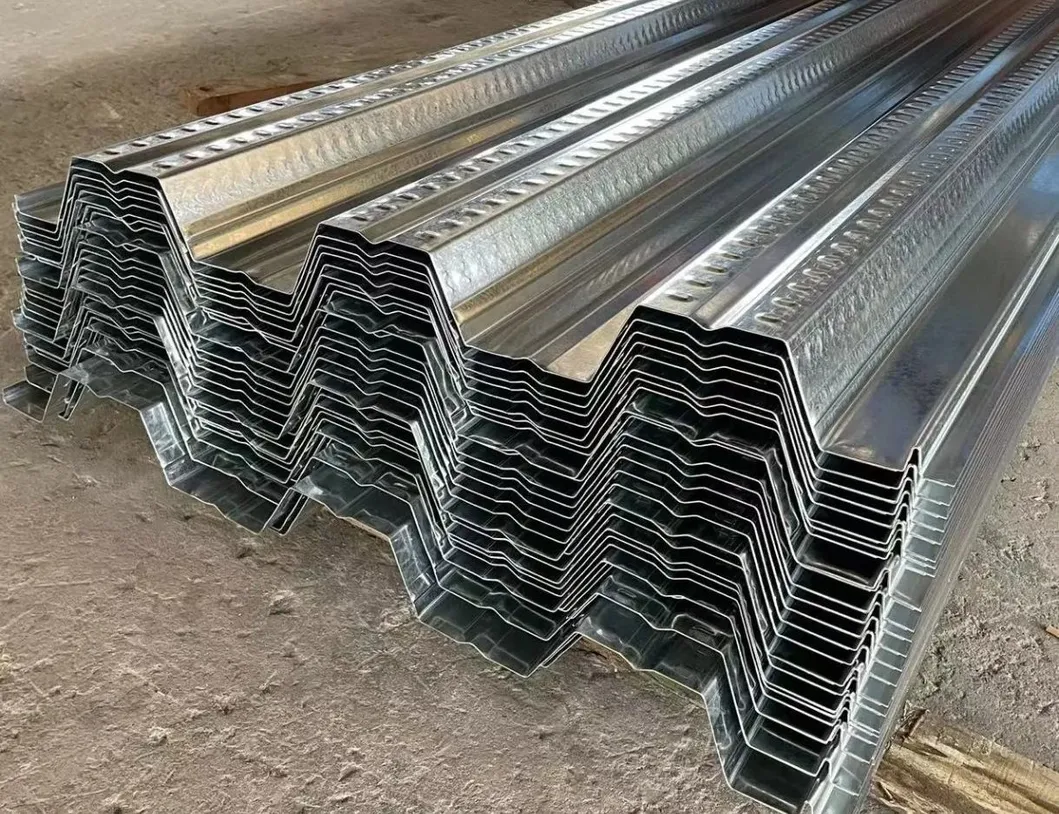

Wide Compatibility

Compatible with concrete thicknesses of 80-150mm to meet general office and storage requirements (3-5 kN/m2). It combines quickly with light steel structures like portal frames and trusses.

📷

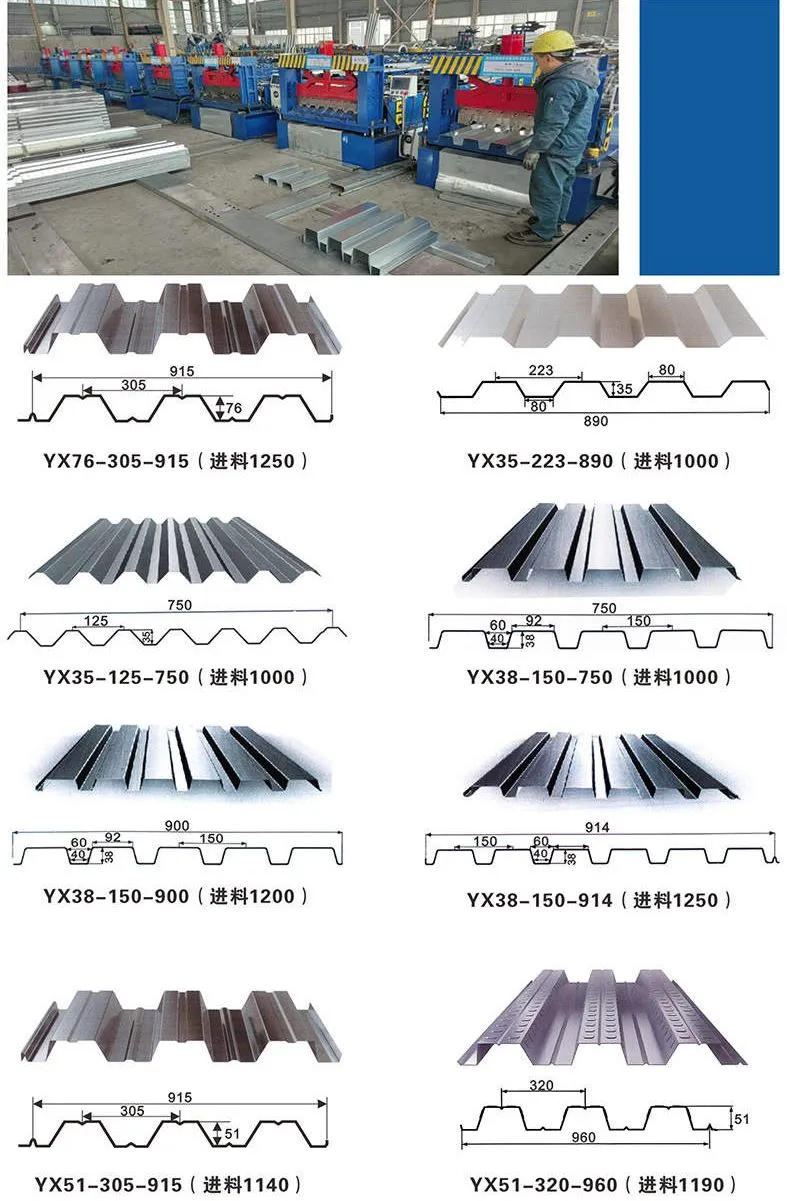

Detailed Photos

✔

Our Advantages & Packaging

⚓

After Sales Service

?

Frequently Asked Questions

1. Can I get some samples?

Yes. We can provide samples. You will need to pay the sample fee and shipping cost in advance, which will be refunded after you place a formal order.

2. Can you produce according to specific samples or drawings?

Yes, we can produce based on your physical samples or technical drawings. We also have the capability to build custom molds and fixtures.

3. What are your terms of payment?

For orders under 1000 USD, 100% in advance. For orders over 1000 USD, 30% T/T in advance with the balance due before shipment.

4. What is the typical delivery time?

Generally, it takes 10 to 25 days after receiving your advance payment. The exact time depends on the specific goods and quantity ordered.

5. Can we visit your production facility?

You are warmly welcome to visit. Once you provide your schedule, we will arrange a professional team to assist you during the visit.

6. What are your after-sale advantages?

We offer a warranty for our products. If any defective parts are found, we provide new replacements free of charge in your next order.

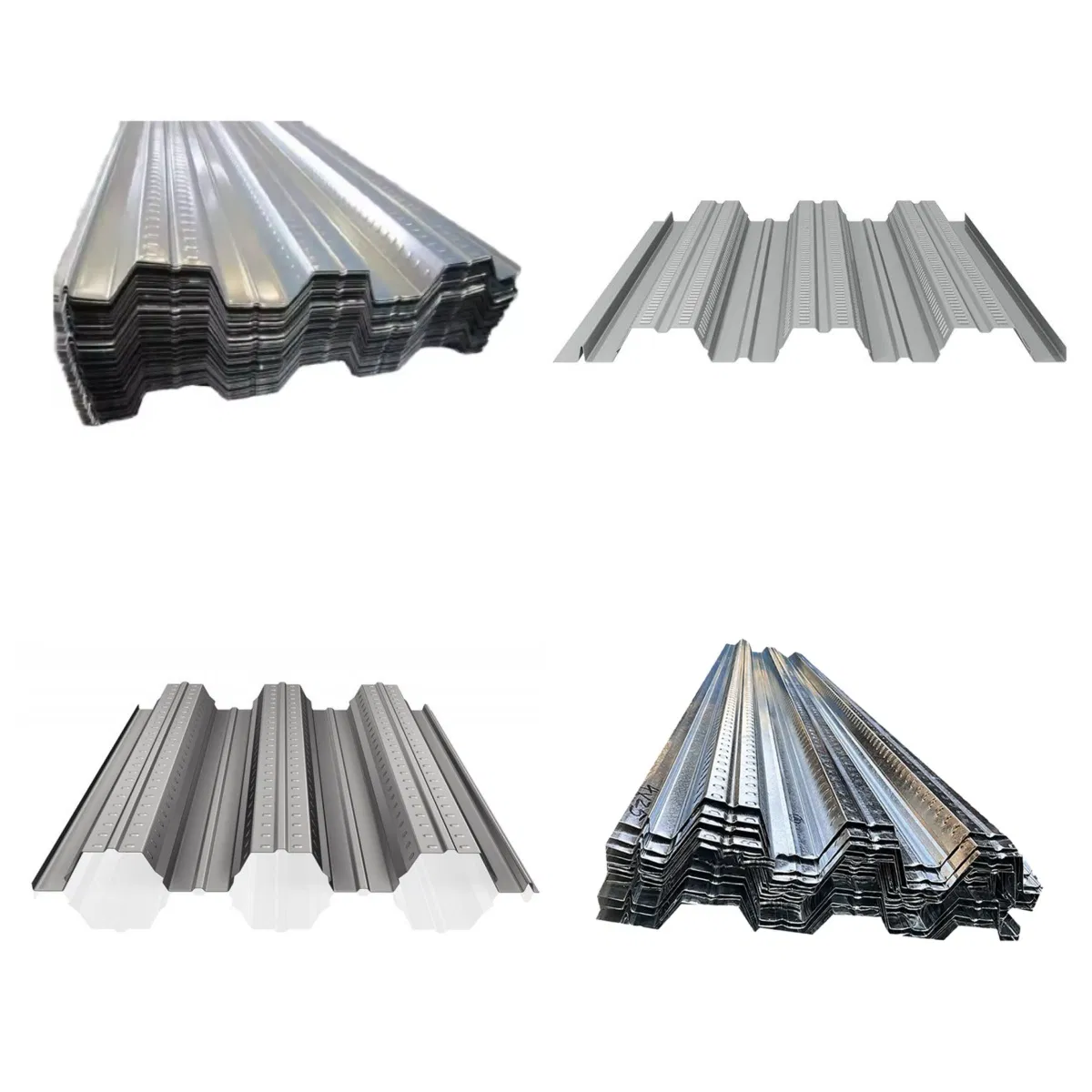

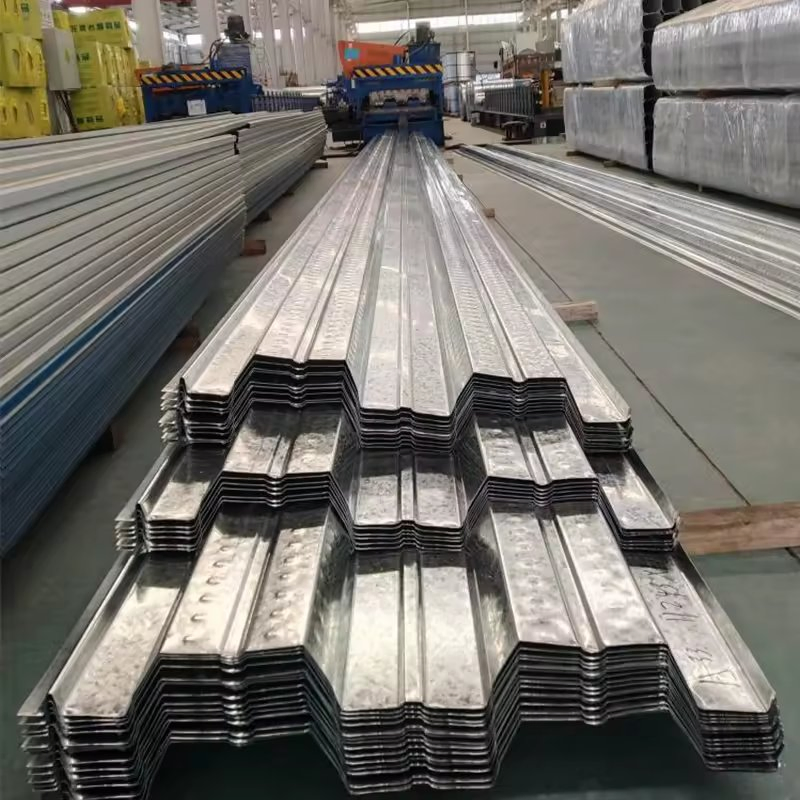

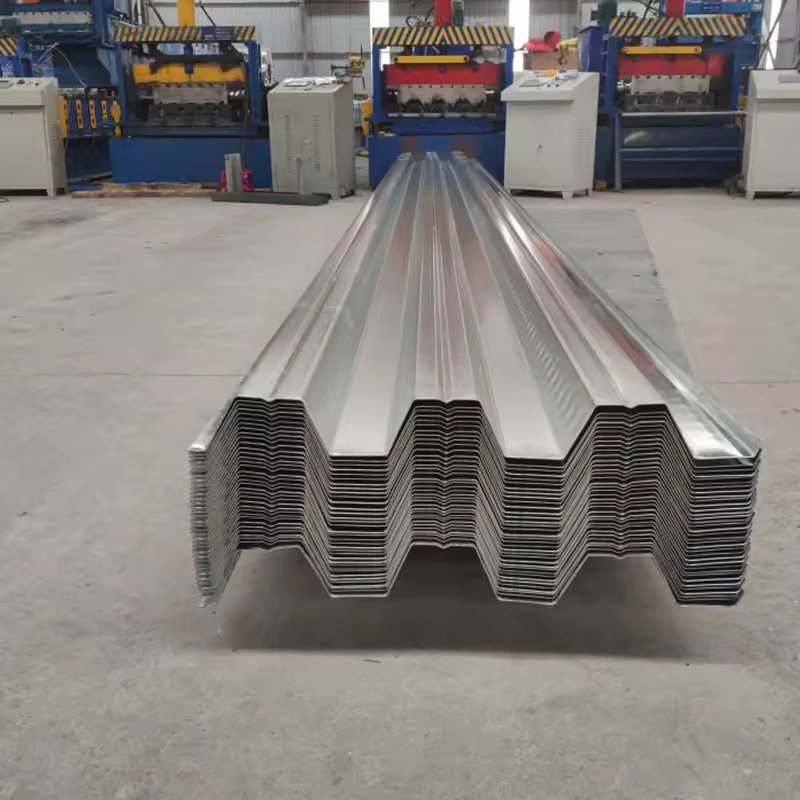

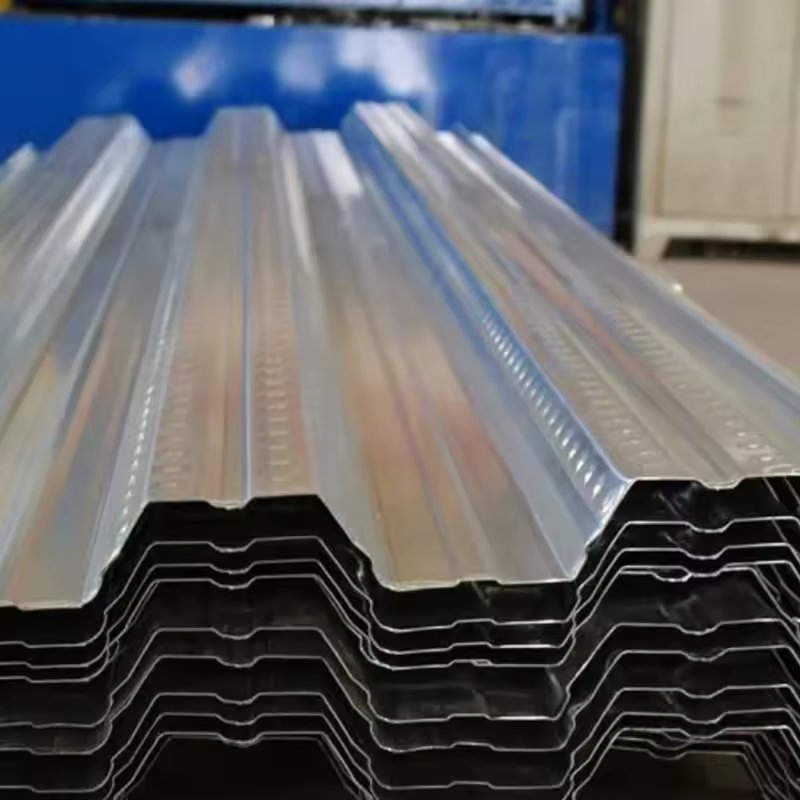

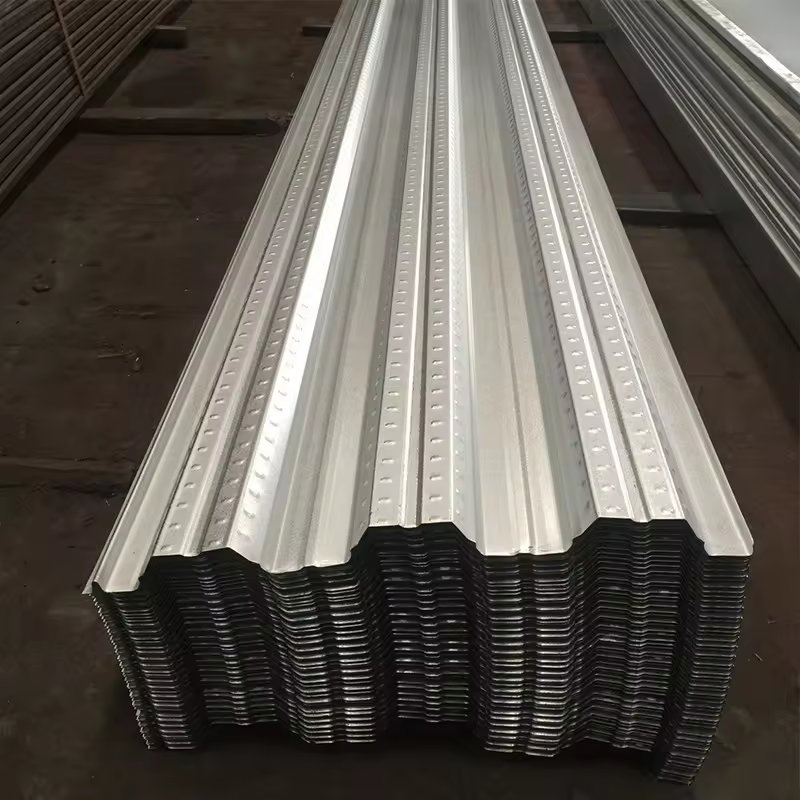

0.12mm 0.15mm Galvanized Corrugated Steel Sheet Roofing Decking Galvanized Metal Floor Decking Sheet
