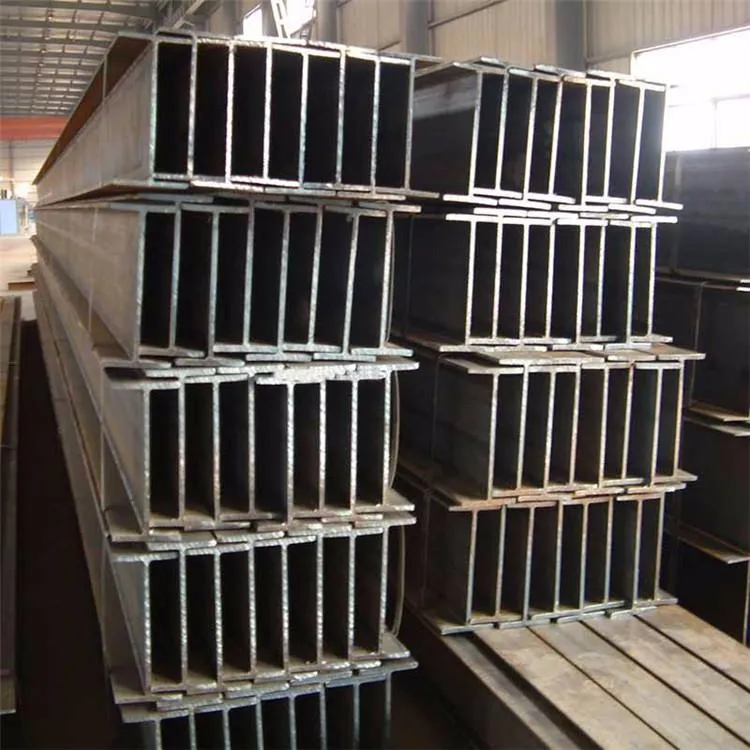

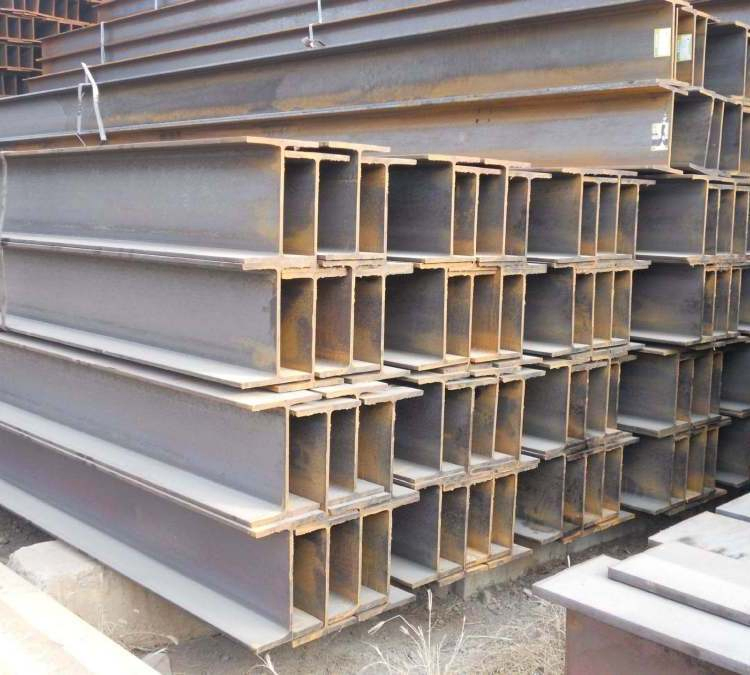

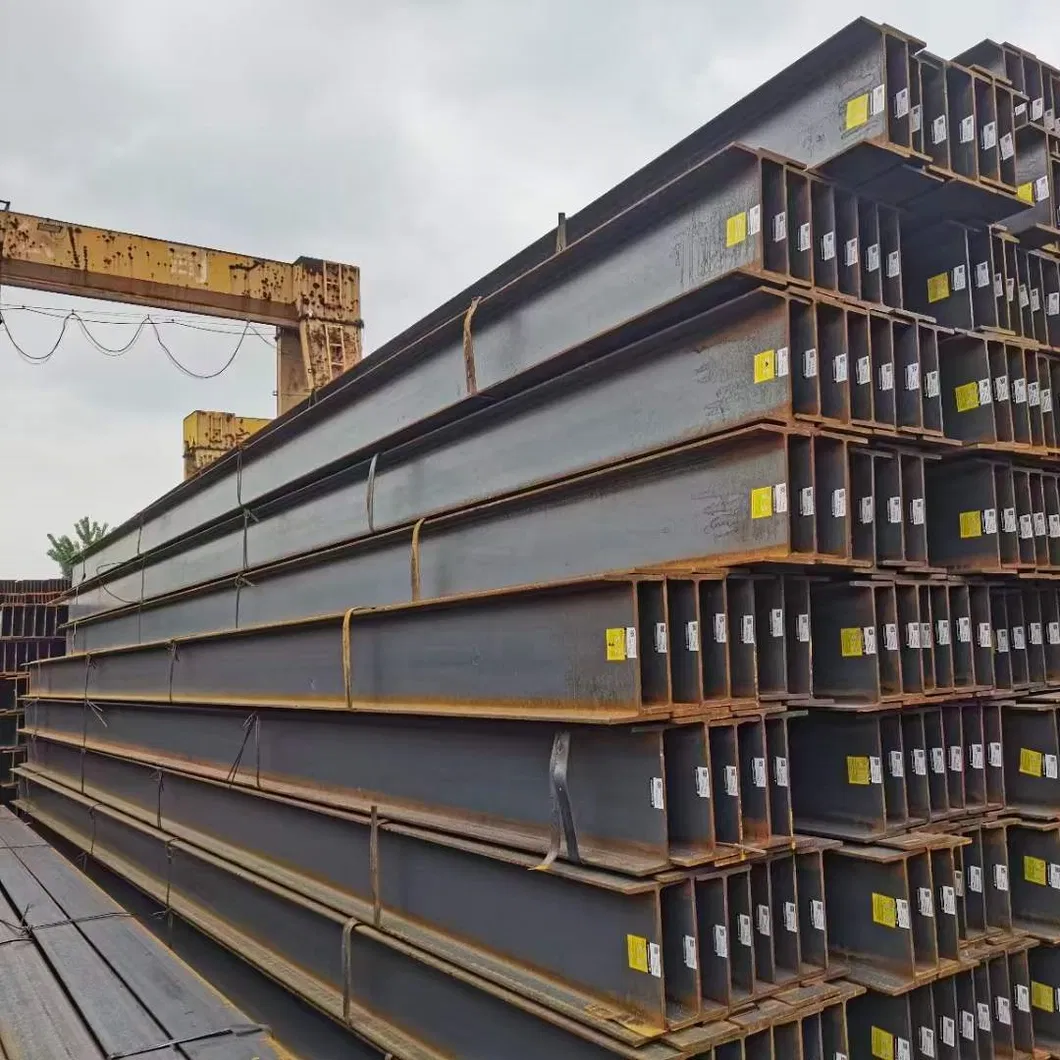

H-beam is a new type of steel for economic construction. It is a Representation of Hot-Rolled H-Section Steel. H-beams are categorized into three main types: Wide flange H-beam (HK), Narrow flange H-shaped steel (HZ), and H-shaped steel pile (HU).
Standard Dimensions: Height H × Width B × Web thickness t1 × Wing thickness t2. For example, Q235B, SS400 200 × 200 × 8 × 12 denotes a 200mm wide web with 8mm thickness and a 200mm wide wing with 12mm thickness.
| Technical Specifications | |
|---|---|

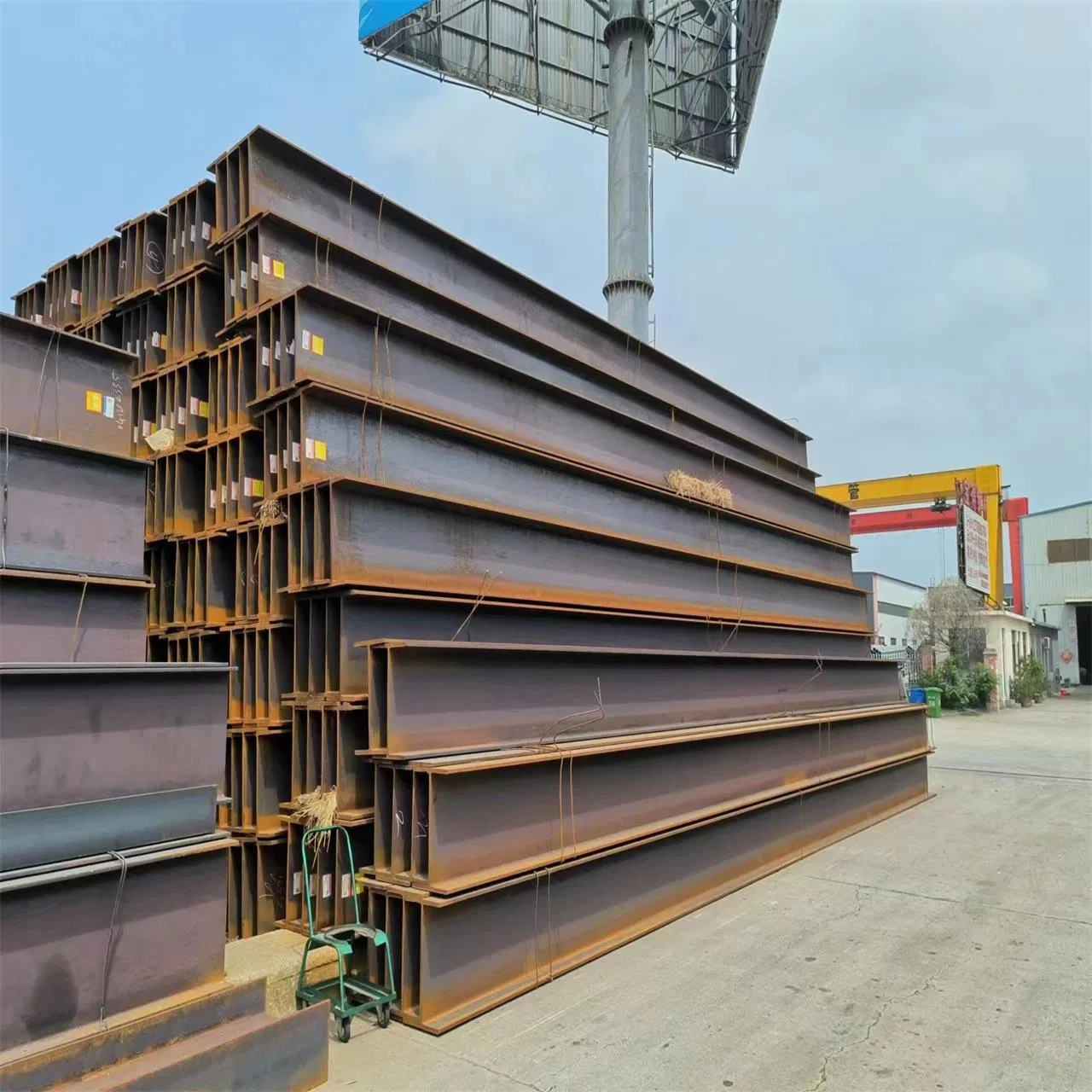

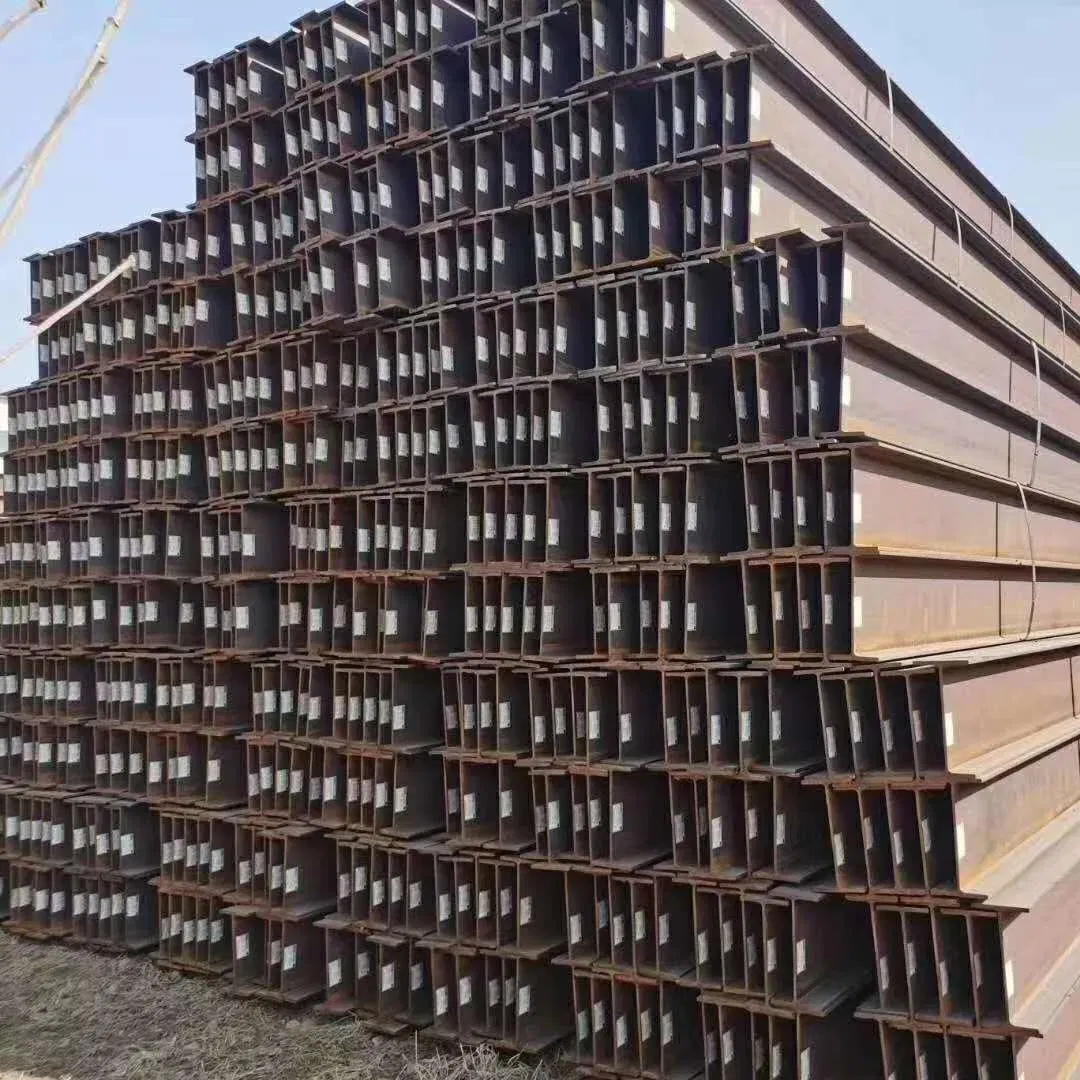

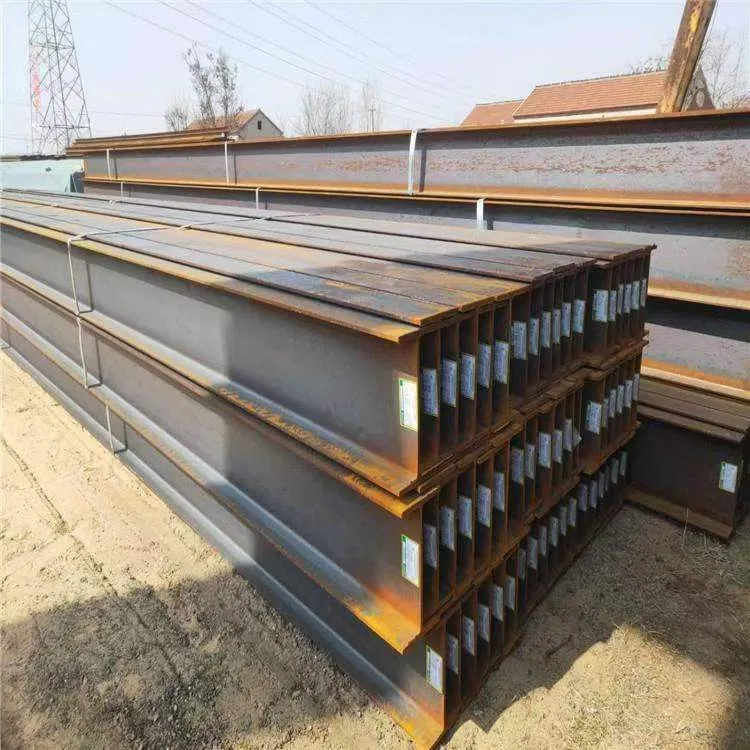

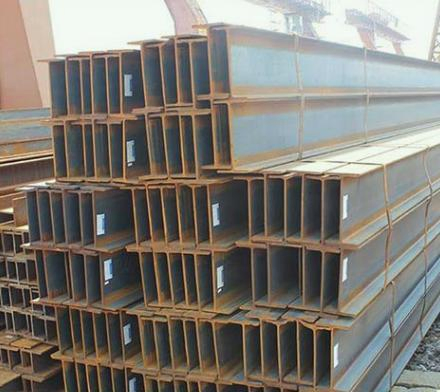

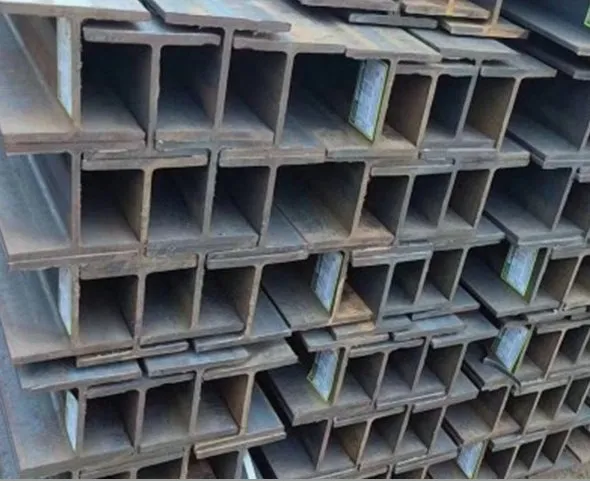

| Product Name | Carbon Steel I/U/H profiles steel beams Wide Flange Section For Construction |
| Shape | H & I beam |
| Technique | Hot rolled / Welded |
| Standard | ASTM / AS / BS / GB / JIS |
| Materials | Q235B, SS400, A-36, AS300B, S355J0, S450J0-T, S275JR |
| Size | 100*50*5*7-900*300*16*28mm |
| Surface | Galvanized / Black |
| Spec (inx1b/ft) | Height (mm) | Width (mm) | Web (mm) | Flange (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| W6X7 | 147 | 100 | 3.3 | 4.2 | 10.5 |
| W6X8.5 | 148 | 100 | 4.3 | 4.9 | 13.0 |
| W6X9 | 150 | 100 | 4.3 | 5.5 | 13.5 |
| W6X12 | 153 | 102 | 5.8 | 7.1 | 18.0 |
| W6X15 | 152 | 152 | 5.8 | 6.6 | 22.5 |
| W8X10 | 200 | 100 | 4.3 | 5.2 | 15.0 |
| W8X21 | 210 | 134 | 6.4 | 10.2 | 31.3 |
We are an enterprise engaged in the research, smelting, and processing of titanium and its alloys, zirconium, tungsten, molybdenum, monel, Inconel, chromium nickel alloys, nickel, and other high-temperature or corrosion-resistant alloys. Our product range includes plates, strips, profiles, bars, wires, pipes, pipe fittings, and forged flanges.

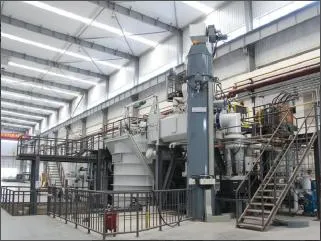

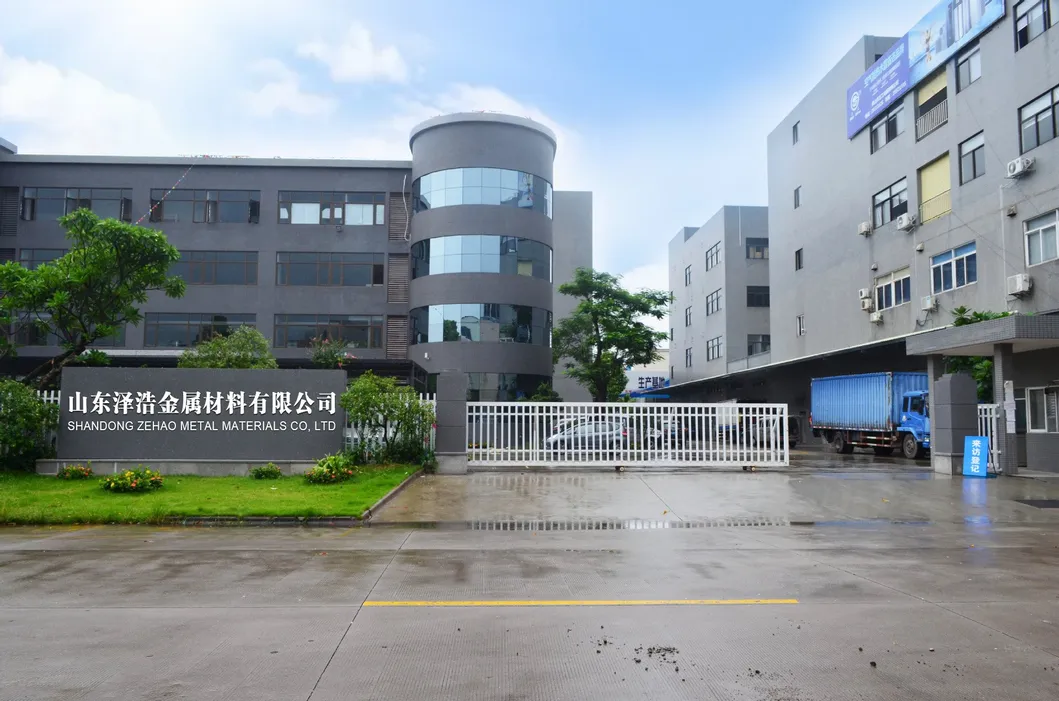

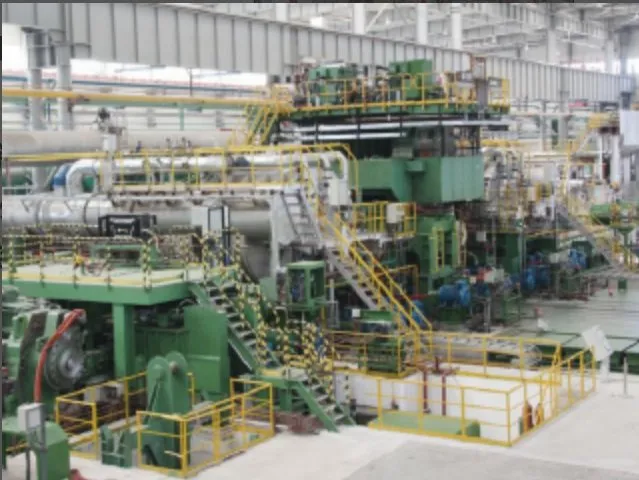

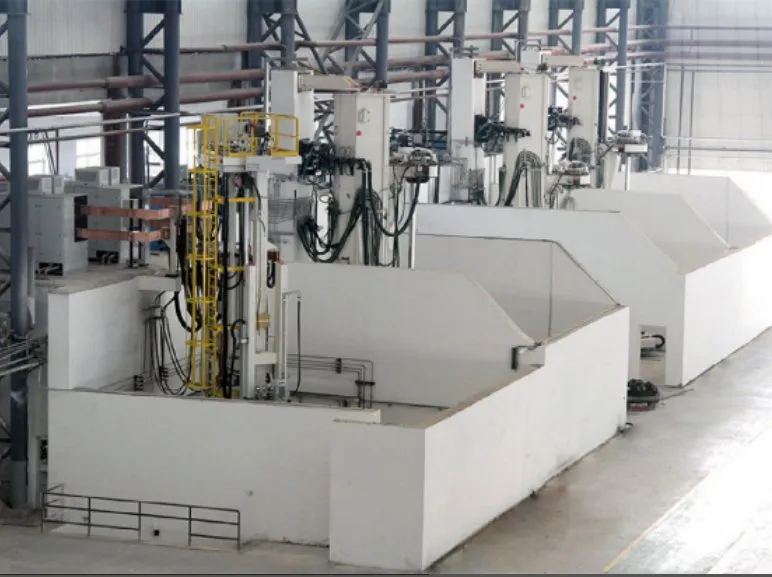

The factory covers an area of 120,000 square meters and features advanced production equipment, including 2t vacuum induction furnaces, German-made 8t and 12t vacuum consumable arc furnaces, 2800mm four-high reversing mills, and vacuum annealing furnaces. Our testing facilities include American NDT systems, spectrum analyzers, and ultrasonic flaw detection systems.
