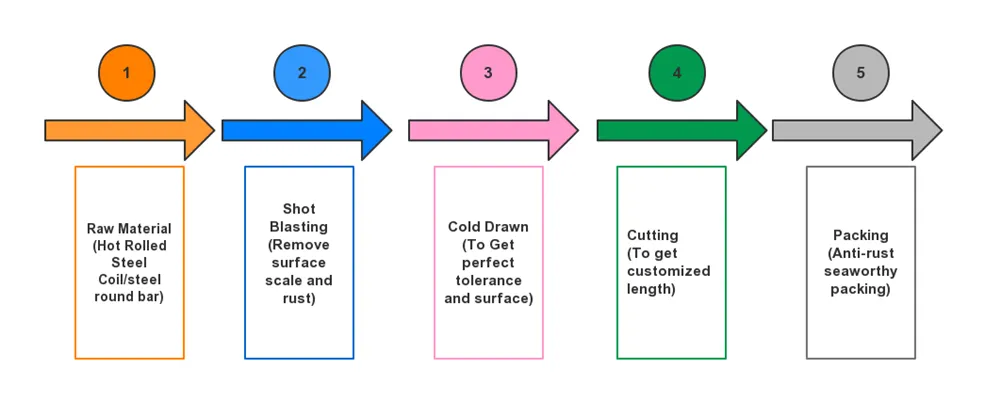

All bars are cleaned by shot blasting before drawing, then pulled through a carbide die, straightened, saw cut to length, oiled, and shipped. Cold drawing results in a product with higher tensile and yield strength, smoother surface finish, and a closer size tolerance.

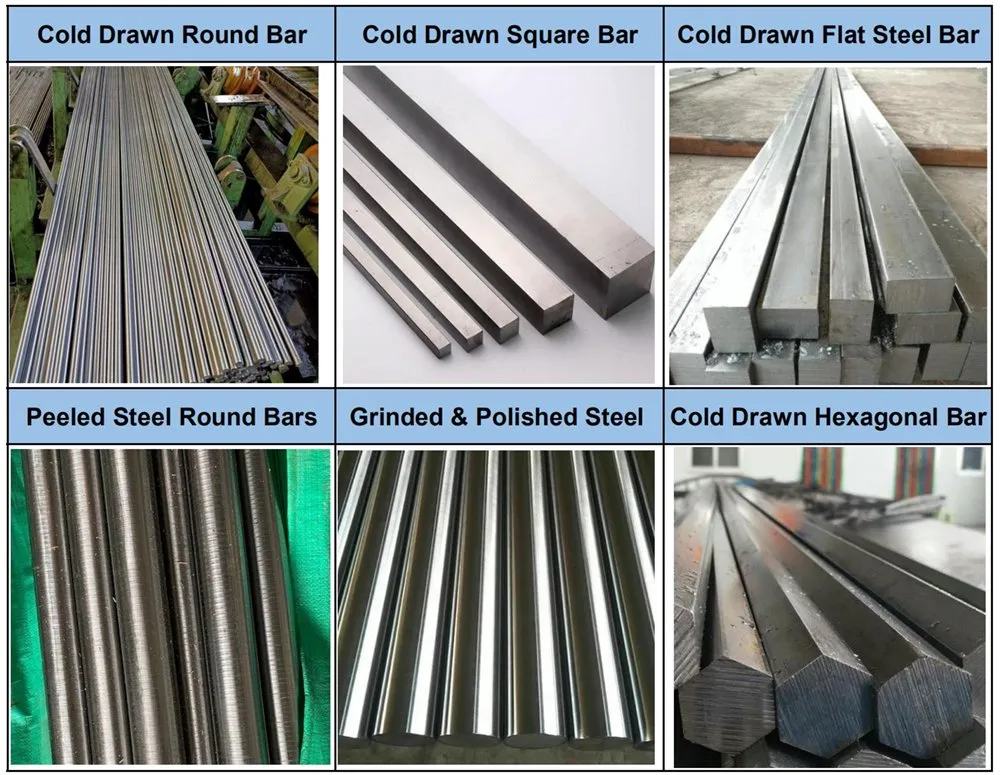

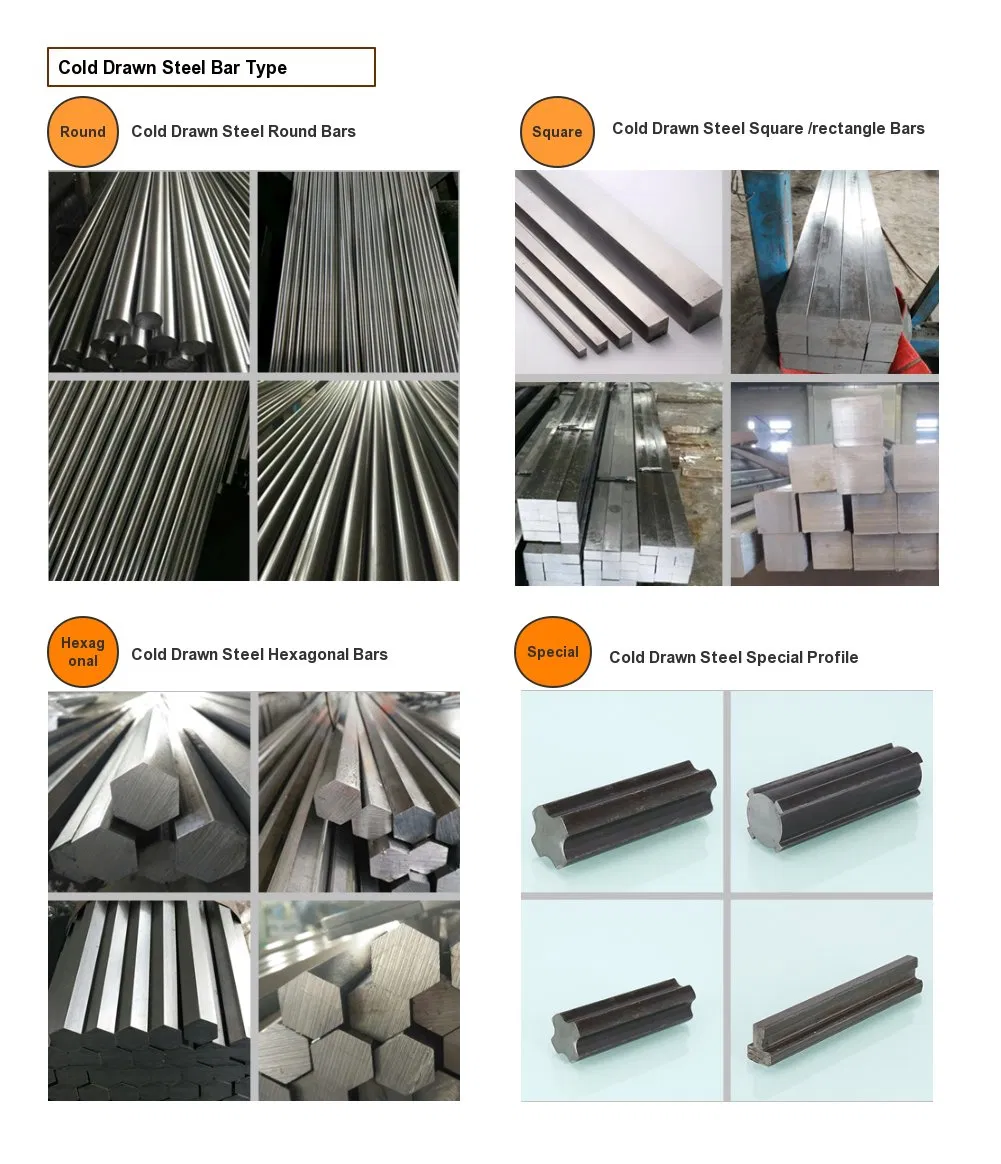

| Shapes | Sizes | Processing |
|---|---|---|

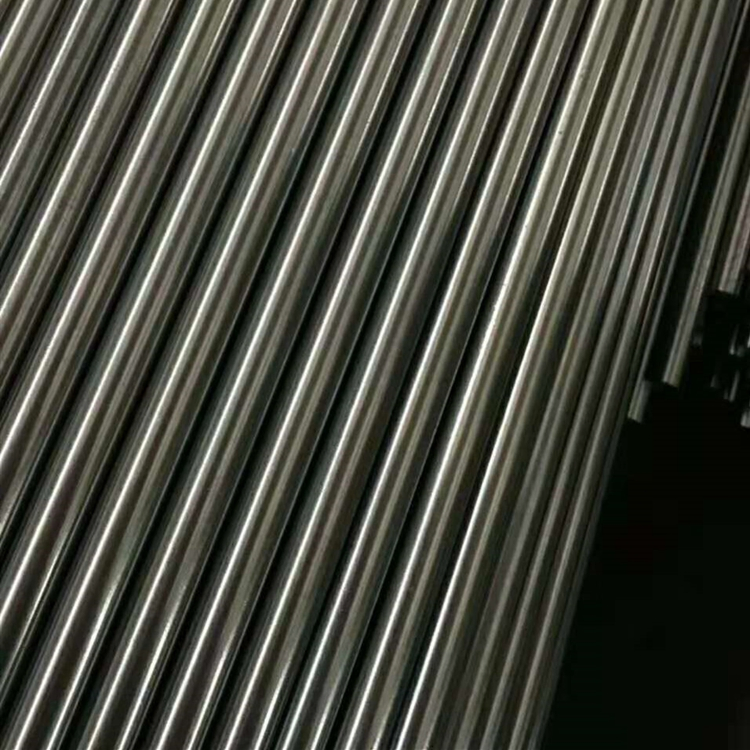

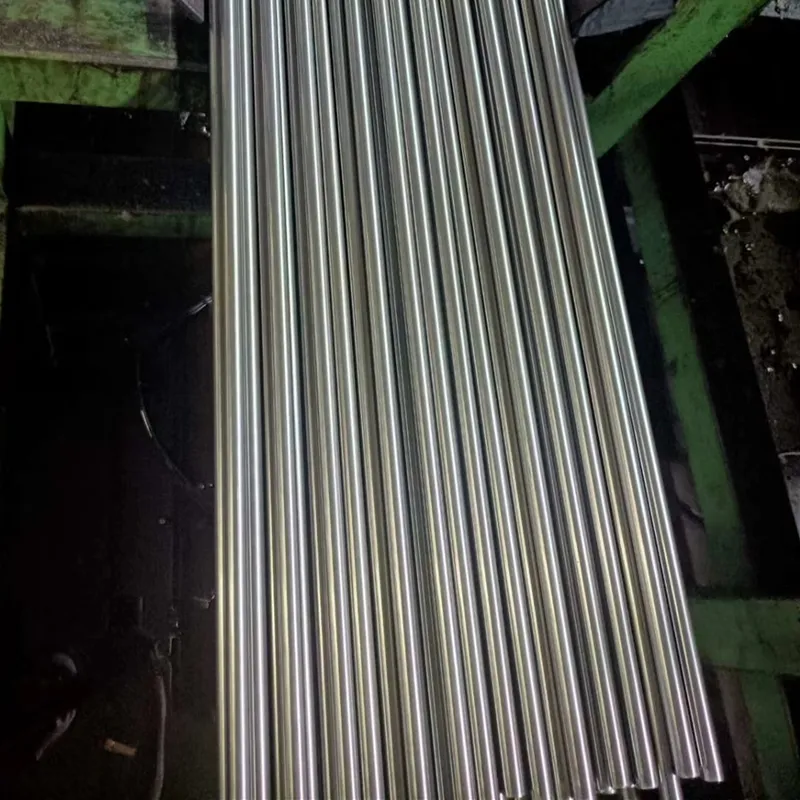

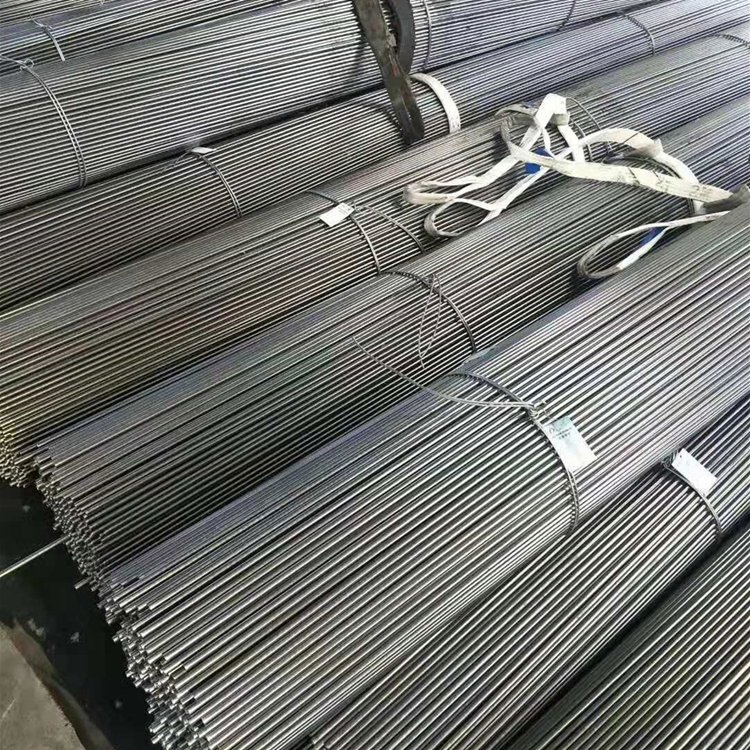

| Steel Round Bar | 5mm to 63.5mm | Cold Drawn |
| Steel Round Bar | 63.5mm-120mm | Smooth-turned and polished |
| Steel Square Bar | 5*5mm to 120*120mm | Cold Drawn |

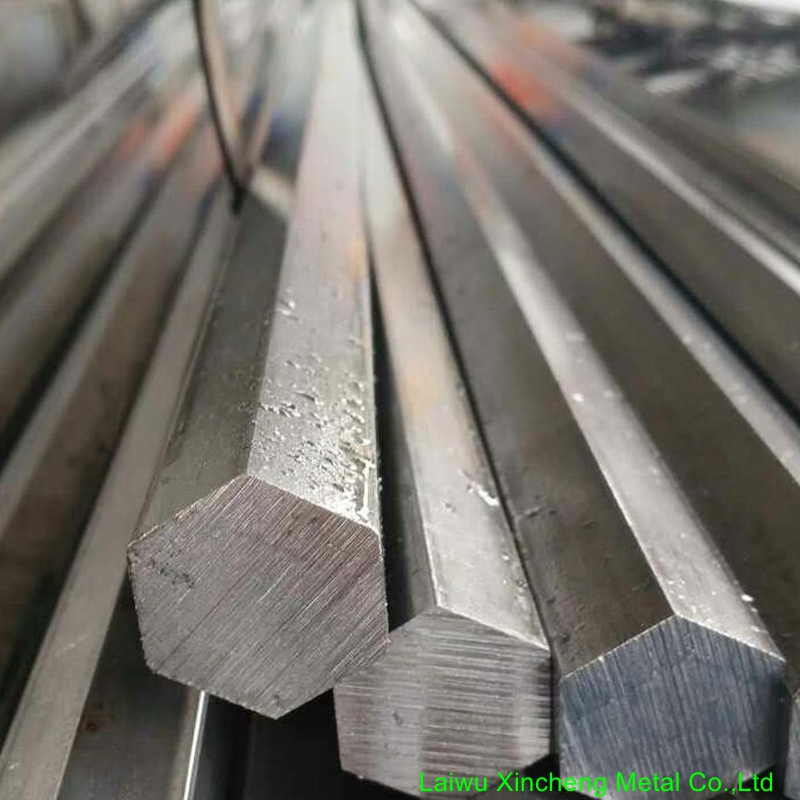

| Steel Hex Bar | 5mm to 120mm | Cold Drawn |
1. Equivalent Steel Grade
| GB | ASTM | JIS | DIN | BS | NF |
|---|---|---|---|---|---|
| 45# | 1045 | S45C | C45 | IC45 08047 | C45 |
2. Chemical Composition (%)
| C | Si | Mn | Cr(≤) | Ni(≤) | Cu(≤) |
|---|---|---|---|---|---|
| 0.42-0.5 | 0.17-0.37 | 0.6-0.9 | 0.25 | 0.3 | 0.25 |
3. Mechanical Properties (Cold Drawn)
| Tensile Strength, Mpa | Min 625 |
| Yield Strength, Mpa | Min 530 |
| Elongation (%) | 12 |
| Brinell Hardness | 179 |
